Wiring diagrams


We thought that we ought to spend a little time producing a series of wiring diagrams for our products to help you on with your projects...


First up a series of simplified Adaptronic E420C diagrams that should cater for most first time installers. Be warned though, a working knowledge of auto electrics is advised. While these diagrams are much simpler than the official Adaptronic distributions you still need to be carefull when following them. If you do not understand any part of the diagram, do not complete it until you are certain that you do understand. It is better to err on the side of caution !


Diagram 1: Basic distributor based system for 4,6 or 8 cylinder engines.
<< click to enlarge for printable version


Diagram 2: Basic wasted spark (coilpack) based system for 4 cylinder engines.
Important: This diagram refers to the use of our 4 cylinder wasted spark coilpack with in-built ignitors.
<< click to enlarge for printable version


Diagram 3: Full, original E420C wiring diagram.
<< click to enlarge for printable version

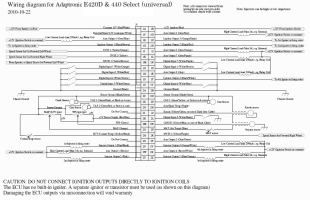

Diagram 4: Full, original E420D / 440 Select (universal) wiring diagram.
<< click to enlarge for printable version


Diagram 5: Front panel 2.5mm serial port wiring diagram for 420d, 440 or Select ECU's.
<< click to enlarge for printable version


Diagram 6: Connecting 420d/440/Select ECU's to Race Technology Dash 2 and DL1 logger.
<< click to enlarge for printable version


Diagram 7: Connecting 420d/440/Select ECU's to Race Technology Dash 2 only.

A sample Dash 2 configuration file is here for download
<< click to enlarge for printable version
